The JavaScript Event Loop: A Unified, Cross-Environment Technical Analysis

A comprehensive deep-dive into the JavaScript event loop architecture across browser and Node.js environments, examining the abstract concurrency model, implementation differences, and performance implications for expert developers.

Table of Contents

• The Abstract Concurrency Model
  • Runtime Architecture
  • Core Execution Primitives
  • Specification Hierarchy
• Universal Priority System: Tasks and Microtasks
  • Queue Processing Model
  • Priority Hierarchy
  • Microtask Starvation Pattern
• Browser Event Loop Architecture
  • WHATWG Processing Model
  • Rendering Pipeline Integration
  • Task Source Prioritization
• Node.js Event Loop: libuv Integration
  • libuv Architecture
  • Phased Event Loop Structure
  • Poll Phase Logic
  • Thread Pool vs Direct I/O
• Node.js-Specific Scheduling
  • Priority Hierarchy
  • nextTick vs setImmediate Execution
  • setTimeout vs setImmediate Ordering
• True Parallelism: Worker Threads
  • Worker Architecture
  • Memory Sharing Patterns
• Best Practices and Performance Optimization
  • Environment-Agnostic Principles
  • Browser-Specific Optimization
  • Node.js-Specific Optimization
  • Performance Monitoring
• Conclusion
• References

The Abstract Concurrency Model

JavaScript’s characterization as a “single-threaded, non-blocking, asynchronous, concurrent language” obscures the sophisticated interplay between the JavaScript engine and its host environment. The event loop is not a language feature but the central mechanism provided by the host to orchestrate asynchronous operations around the engine’s single-threaded execution.

Runtime Architecture

graph TB
    subgraph "JavaScript Runtime"
        subgraph "JavaScript Engine"
            A["V8/SpiderMonkey/JavaScriptCore"]
            B[ECMAScript Implementation]
            C[Call Stack & Heap]
            D[Garbage Collection]
        end

        subgraph "Host Environment"
            E["Browser APIs / Node.js APIs"]
            F[Event Loop]
            G[I/O Operations]
            H[Timer Management]
        end

        subgraph "Bridge Layer"
            I[API Bindings]
            J[Callback Queuing]
            K[Event Delegation]
        end
    end

    A --> B
    B --> C
    B --> D
    E --> F
    F --> G
    F --> H
    B --> I
    I --> J
    J --> K
    K --> F

Core Execution Primitives

The ECMAScript specification defines three fundamental primitives:

1. Call Stack: LIFO data structure tracking execution context
2. Heap: Unstructured memory region for object allocation
3. Run-to-Completion Guarantee: Functions execute without preemption

graph LR
    subgraph "Execution Model"
        A[Task Queue] --> B[Event Loop]
        B --> C[Call Stack]
        C --> D[Function Execution]
        D --> E[Return/Complete]
        E --> F[Stack Empty?]
        F -->|Yes| G[Next Task]
        F -->|No| D
        G --> A
    end

Specification Hierarchy

graph TD
    A[ECMAScript 262] --> B[Abstract Agent Model]
    B --> C[Jobs & Job Queues]

    D[WHATWG HTML Standard] --> E[Browser Event Loop]
    E --> F[Tasks & Microtasks]
    E --> G[Rendering Pipeline]

    H[Node.js/libuv] --> I[Phased Event Loop]
    I --> J[I/O Optimization]
    I --> K[Thread Pool]

    C --> E
    C --> I

Universal Priority System: Tasks and Microtasks

All modern JavaScript environments implement a two-tiered priority system governing asynchronous operation scheduling.

Queue Processing Model

graph TD
    A[Event Loop Tick] --> B[Select Macrotask]
    B --> C[Execute Macrotask]
    C --> D[Call Stack Empty?]
    D -->|No| C
    D -->|Yes| E[Microtask Checkpoint]
    E --> F[Process All Microtasks]
    F --> G[Microtask Queue Empty?]
    G -->|No| F
    G -->|Yes| H[Next Phase]
    H --> A

Priority Hierarchy

graph TD
    subgraph "Execution Priority"
        A[Synchronous Code] --> B[nextTick Queue]
        B --> C[Microtask Queue]
        C --> D[Macrotask Queue]
        D --> E[Event Loop Phases]
    end

    subgraph "Macrotask Sources"
        F[setTimeout/setInterval]
        G[I/O Operations]
        H[User Events]
        I[Network Requests]
    end

    subgraph "Microtask Sources"
        J[Promise callbacks]
        K[queueMicrotask]
        L[MutationObserver]
    end

    F --> D
    G --> D
    H --> D
    I --> D
    J --> C
    K --> C
    L --> C

Microtask Starvation Pattern

// Pathological microtask starvation
function microtaskFlood() {
  Promise.resolve().then(microtaskFlood)
}
microtaskFlood()

// This macrotask will never execute
setTimeout(() => {
  console.log("Starved macrotask")
}, 1000)

Browser Event Loop Architecture

The browser event loop is optimized for UI responsiveness, integrating directly with the rendering pipeline.

WHATWG Processing Model

graph TD
    A[Event Loop Iteration] --> B[Select Task from Queue]
    B --> C[Execute Task]
    C --> D[Call Stack Empty?]
    D -->|No| C
    D -->|Yes| E[Microtask Checkpoint]
    E --> F[Drain Microtask Queue]
    F --> G[Update Rendering]
    G --> H[Repaint Needed?]
    H -->|Yes| I[Run rAF Callbacks]
    I --> J[Style Recalculation]
    J --> K[Layout/Reflow]
    K --> L[Paint]
    L --> M[Composite]
    H -->|No| N[Idle Period]
    M --> N
    N --> A

Rendering Pipeline Integration

graph LR
    subgraph "Frame Budget (16.7ms)"
        A[JavaScript Execution] --> B[Style Calculation]
        B --> C[Layout]
        C --> D[Paint]
        D --> E[Composite]
    end

    subgraph "requestAnimationFrame"
        F[rAF Callbacks] --> G[Before Repaint]
    end

    subgraph "Timer Inaccuracy"
        H[setTimeout Delay] --> I[Queuing Delay]
        I --> J[Actual Execution]
    end

Task Source Prioritization

graph TD
    subgraph "Task Sources"
        A[User Interaction] --> B[High Priority]
        C[DOM Manipulation] --> D[Medium Priority]
        E[Networking] --> F[Medium Priority]
        G[Timers] --> H[Low Priority]
    end

    subgraph "Browser Implementation"
        I[Task Queue Selection] --> J[Source-Based Priority]
        J --> K[Responsive UI]
    end

Node.js Event Loop: libuv Integration

Node.js implements a phased event loop architecture optimized for high-throughput I/O operations.

libuv Architecture

graph TB
    subgraph "Node.js Runtime"
        A[V8 Engine] --> B[JavaScript Execution]
        C[libuv] --> D[Event Loop]
        C --> E[Thread Pool]
        C --> F[I/O Operations]
    end

    subgraph "OS Abstraction"
        G[Linux: epoll] --> C
        H[macOS: kqueue] --> C
        I[Windows: IOCP] --> C
    end

    subgraph "Thread Pool"
        J[File I/O] --> E
        K[DNS Lookup] --> E
        L[Crypto Operations] --> E
    end

    subgraph "Direct I/O"
        M[Network Sockets] --> F
        N[HTTP/HTTPS] --> F
    end

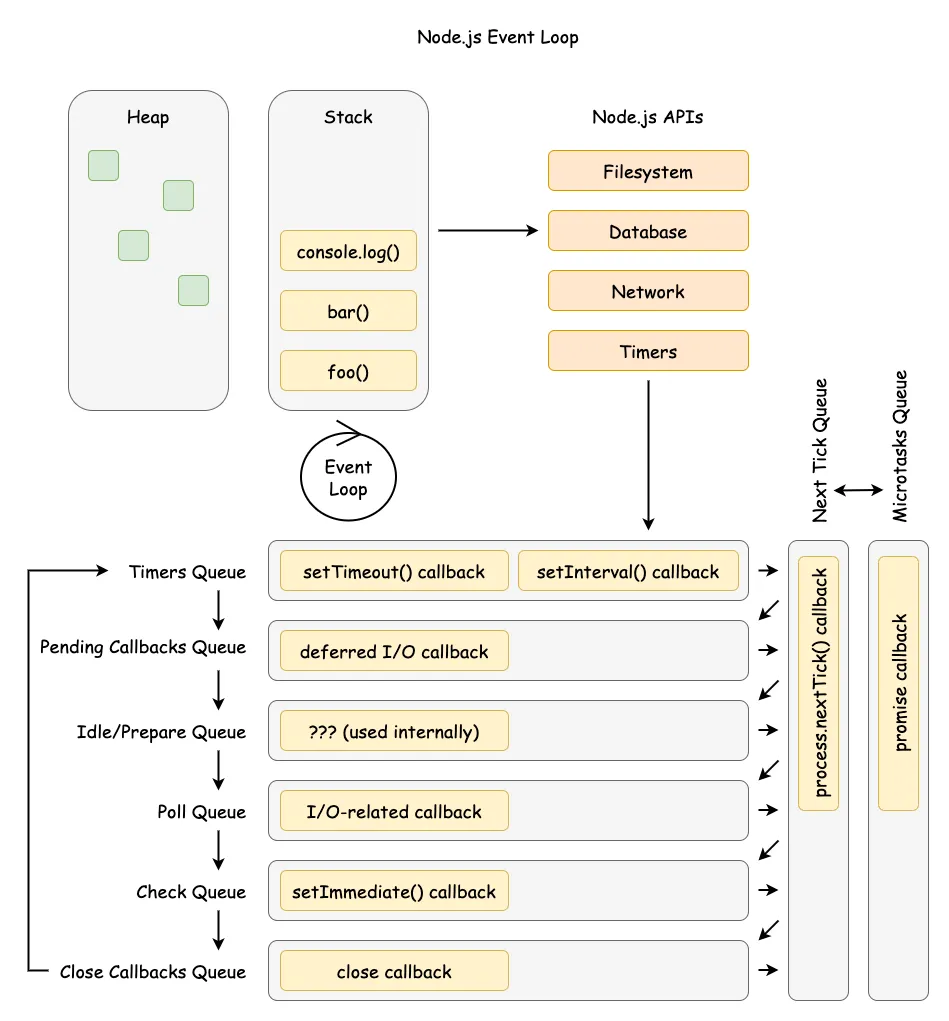

Phased Event Loop Structure

graph TD
    A[Event Loop Tick] --> B[timers]
    B --> C[pending callbacks]
    C --> D[idle, prepare]
    D --> E[poll]
    E --> F[check]
    F --> G[close callbacks]
    G --> A

    subgraph "Phase Details"
        H[setTimeout/setInterval] --> B
        I[System Errors] --> C
        J[I/O Callbacks] --> E
        K[setImmediate] --> F
        L[Close Events] --> G
    end

Poll Phase Logic

graph TD
    A[Enter Poll Phase] --> B{setImmediate callbacks?}
    B -->|Yes| C[Don't Block]
    B -->|No| D{Timers Expiring Soon?}
    D -->|Yes| E[Wait for Timer]
    D -->|No| F{Active I/O Operations?}
    F -->|Yes| G[Wait for I/O]
    F -->|No| H[Exit Poll]

    C --> I[Proceed to Check]
    E --> I
    G --> I
    H --> I

Thread Pool vs Direct I/O

graph LR
    subgraph "Thread Pool Operations"
        A[fs.readFile] --> B[Blocking I/O]
        C[dns.lookup] --> B
        D[crypto.pbkdf2] --> B
        E[zlib.gzip] --> B
    end

    subgraph "Direct I/O Operations"
        F[net.Socket] --> G[Non-blocking I/O]
        H[http.get] --> G
        I[WebSocket] --> G
    end

    B --> J[libuv Thread Pool]
    G --> K[Event Loop Direct]

Node.js-Specific Scheduling

Node.js provides unique scheduling primitives with distinct priority levels.

Priority Hierarchy

graph TD
    subgraph "Node.js Priority System"
        A[Synchronous Code] --> B[process.nextTick]
        B --> C[Microtasks]
        C --> D[timers Phase]
        D --> E[poll Phase]
        E --> F[check Phase]
        F --> G[close callbacks]
    end

    subgraph "Scheduling APIs"
        H[process.nextTick] --> I[Highest Priority]
        J[Promise.then] --> K[Microtask Level]
        L[setTimeout] --> M[Timer Phase]
        N[setImmediate] --> O[Check Phase]
    end

nextTick vs setImmediate Execution

graph TD
    A[I/O Callback] --> B[Poll Phase]
    B --> C[Execute I/O Callback]
    C --> D[process.nextTick Queue]
    C --> E[setImmediate Queue]
    D --> F[Drain nextTick]
    F --> G[Drain Microtasks]
    G --> H[Check Phase]
    H --> I[Execute setImmediate]
    I --> J[Close Callbacks]
    J --> K[Next Tick]

setTimeout vs setImmediate Ordering

graph LR
    subgraph "Within I/O Cycle"
        A[I/O Callback] --> B[setImmediate First]
        B --> C[setTimeout Second]
    end

    subgraph "Outside I/O Cycle"
        D[Main Module] --> E[Non-deterministic]
        E --> F[Performance Dependent]
    end

True Parallelism: Worker Threads

Worker threads provide true parallelism by creating independent event loops.

Worker Architecture

graph TB
    subgraph "Main Thread"
        A[Main Event Loop] --> B[UI Thread]
        C[postMessage] --> D[Message Channel]
    end

    subgraph "Worker Thread"
        E[Worker Event Loop] --> F[Background Thread]
        G[onmessage] --> H[Message Handler]
    end

    subgraph "Communication"
        I[Structured Clone] --> J[Copy by Default]
        K[Transferable Objects] --> L[Zero-Copy Transfer]
        M[SharedArrayBuffer] --> N[Shared Memory]
    end

    D --> E
    H --> C
    I --> D
    K --> D
    M --> D

Memory Sharing Patterns

graph TD
    subgraph "Communication Methods"
        A[postMessage] --> B[Structured Clone]
        C[Transferable Objects] --> D[Ownership Transfer]
        E[SharedArrayBuffer] --> F[Shared Memory]
    end

    subgraph "Safety Mechanisms"
        G[Thread Isolation] --> H[No Race Conditions]
        I[Atomic Operations] --> J[Safe Coordination]
        K[Message Passing] --> L[Explicit Communication]
    end

Best Practices and Performance Optimization

Environment-Agnostic Principles

graph TD
    A[Keep Tasks Short] --> B[Avoid Blocking]
    C[Master Microtask/Macrotask Choice] --> D[Proper Scheduling]
    E[Avoid Starvation] --> F[Healthy Event Loop]

    subgraph "Anti-patterns"
        G[Long Synchronous Code] --> H[UI Blocking]
        I[Recursive Microtasks] --> J[Event Loop Starvation]
        K[Blocking I/O] --> L[Poor Performance]
    end

Browser-Specific Optimization

graph LR
    subgraph "Animation Best Practices"
        A[requestAnimationFrame] --> B[Smooth 60fps]
        C[setTimeout Animation] --> D[Screen Tearing]
    end

    subgraph "Computation Offloading"
        E[Web Workers] --> F[Background Processing]
        G[Main Thread] --> H[UI Responsiveness]
    end

Node.js-Specific Optimization

graph TD
    subgraph "Scheduling Choices"
        A[setImmediate] --> B[Post-I/O Execution]
        C["setTimeout(0)"] --> D[Timer Phase]
        E[process.nextTick] --> F[Critical Operations]
    end

    subgraph "Performance Tuning"
        G[CPU-Bound Work] --> H[worker_threads]
        I[I/O Bottleneck] --> J[Thread Pool Size]
        K[Network I/O] --> L[Event Loop Capacity]
    end

Performance Monitoring

graph LR
    subgraph "Bottleneck Identification"
        A[Event Loop Lag] --> B[CPU-Bound]
        C[I/O Wait Time] --> D[Network/File I/O]
        E[Thread Pool Queue] --> F[Blocking Operations]
    end

    subgraph "Monitoring Tools"
        G[Event Loop Metrics] --> H[Lag Detection]
        I[Memory Usage] --> J[Leak Detection]
        K[CPU Profiling] --> L[Hot Paths]
    end

Conclusion

The JavaScript event loop is not a monolithic entity but an abstract concurrency model with environment-specific implementations. Expert developers must understand both the universal principles (call stack, run-to-completion, microtask/macrotask hierarchy) and the divergent implementations (browser’s rendering-centric model vs Node.js’s I/O-centric phased architecture).

Key takeaways for expert-level development:

1. Environment Awareness: Choose scheduling primitives based on the target environment
2. Performance Profiling: Identify bottlenecks in the appropriate layer (event loop, thread pool, OS I/O)
3. Parallelism Strategy: Use worker threads for CPU-intensive tasks while maintaining event loop responsiveness
4. Scheduling Mastery: Understand when to use microtasks vs macrotasks for optimal performance

The unified mental model requires appreciating common foundations while recognizing environment-specific mechanics that dictate performance and behavior across the JavaScript ecosystem.

References

• The Node.js Event Loop Official Docs
• Libuv Design - The I/O Loop
• Node Interactive 2016 Talk - Everything You Need to Know About Node.js Event Loop - Bert Belder, IBM
• Node Interactive 2016 Talk Presentation
• A Deep Dive Into the Node js Event Loop - Tyler Hawkins
• A Deep Dive Into the Node js Event Loop - Code & Slides
• Node’s Event Loop From the Inside Out by Sam Roberts, IBM
• WHATWG HTML Living Standard - Event Loops
• ECMAScript 2024 - Jobs and Job Queues
